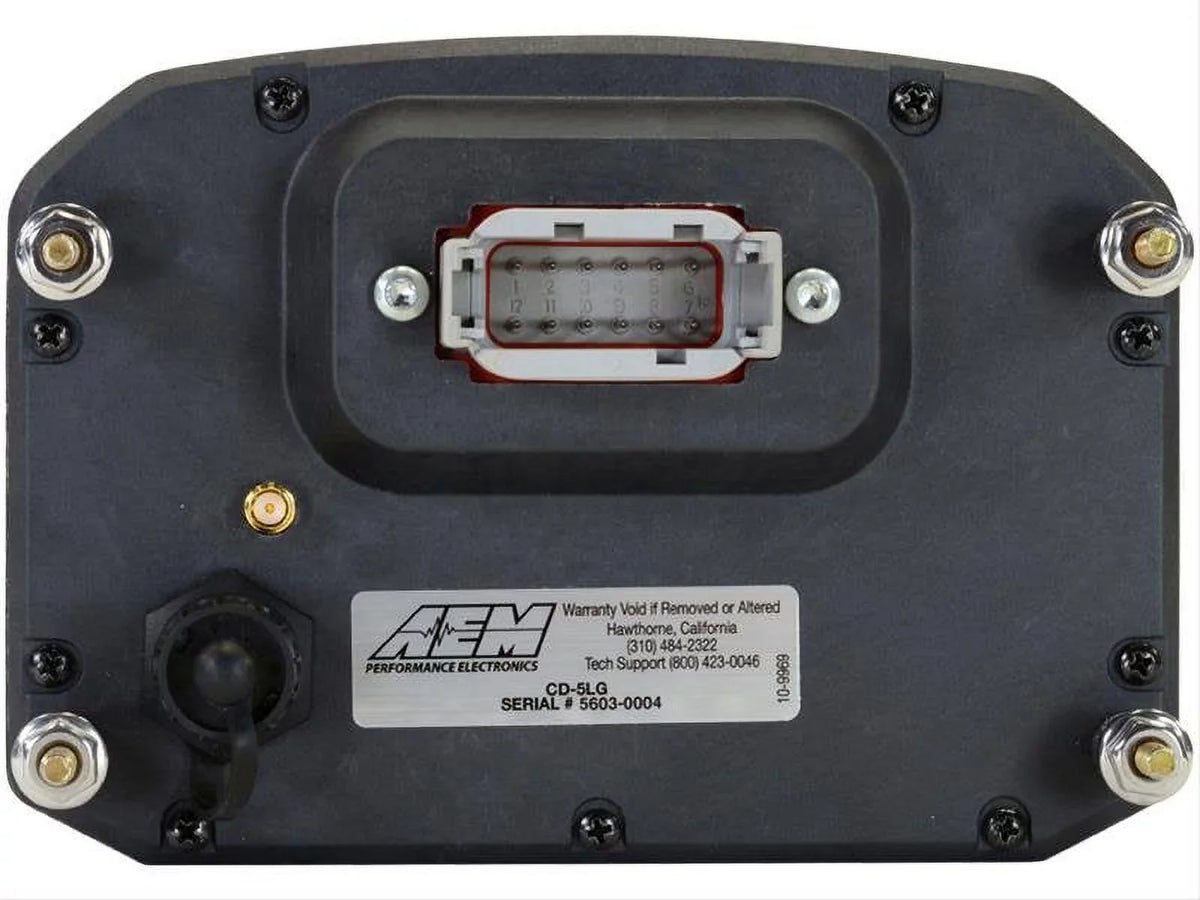

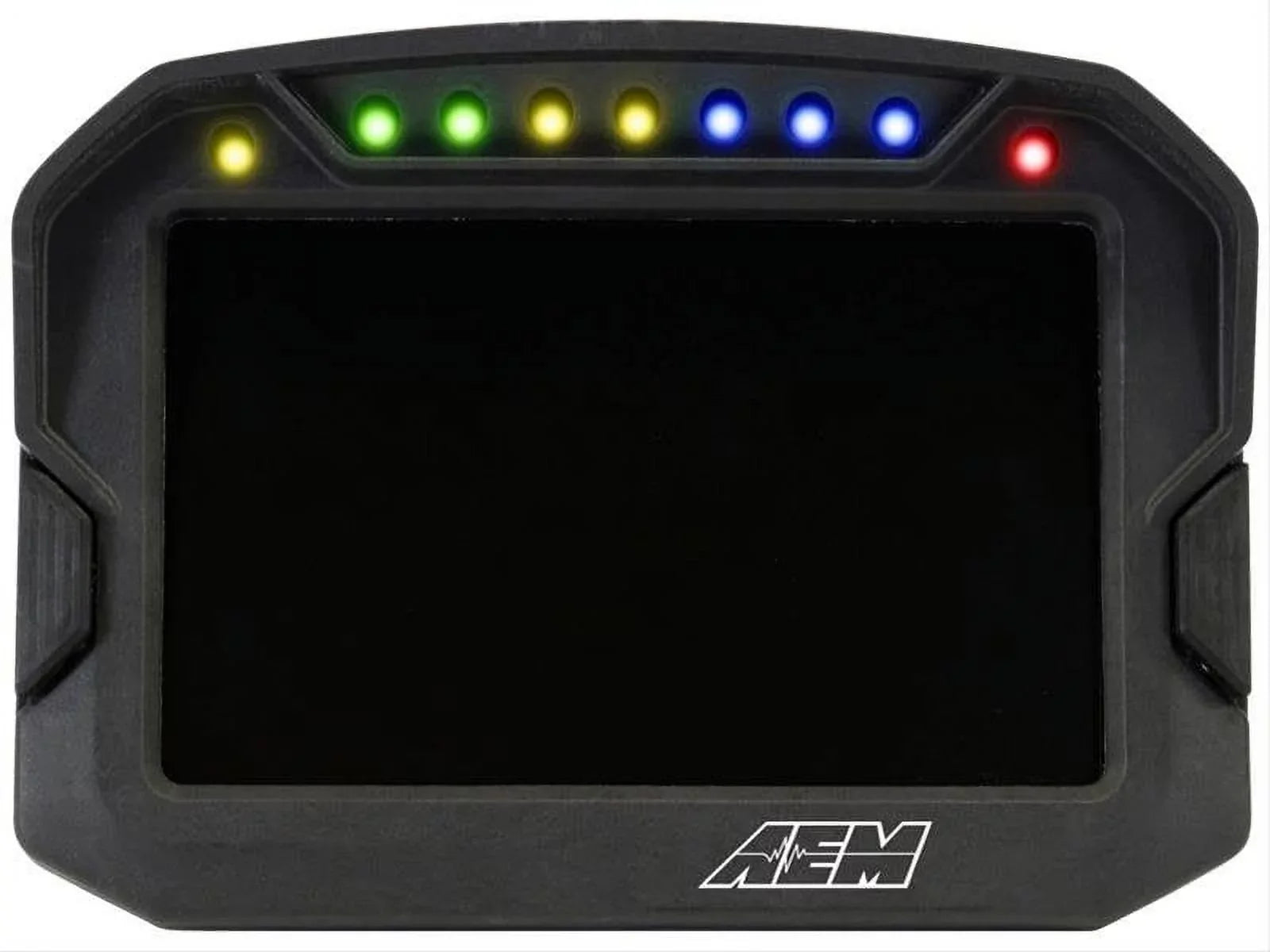

AEM 30-5603 CD-5LG Digital Dash Display

Full color 5" screen with 800x480 resolution Direct sunlight readable (1000cd/m2 brightness and anti-glare filter) Rugged, lightweight flow-molded carbon fiber composite enclosure Total display weight of 11.7 oz./331 grams IP66 water resistance allows for operation in Vessel and motorcycles without worry Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately) Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately) Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately) Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined) Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc. Use included page layouts and input your channels and text, or create your own from scratch Free DashDesign Graphics Editor software Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable) Has Odometer function, along with Two programmable LEDs Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own 'Headlight-in' connection dims the dash and LEDs during night operation Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
